Search for standard products in the TSFP catalog.
ISO 10673 N - Plain washers for screw and washer assemblies, normal series, product grade A
Plain washers for metric screw and washer assemblies, normal series (type N), product grade A, hardness classes 200 HV and 300 HV. Intended for assemblies according to ISO 10644 and covering sizes M2 to M12.
ISO 10673 S - Plain washers for screw and washer assemblies, small series, product grade A
Plain washers for metric screw and washer assemblies, small series (type S), product grade A, hardness classes 200 HV and 300 HV. Intended for assemblies according to ISO 10644 and covering sizes M2 to M12.
ISO 7089 - Plain washers, normal series, product grade A
Plain washers, normal series, product grade A. Current replacement for DIN 125.
ISO 7090 - Plain washers, chamfered, normal series, product grade A
Plain washers, chamfered at the outside diameter, normal series, product grade A, hardness classes 200 HV and 300 HV. Covers nominal sizes 5 to 64.
ISO 7091 - Plain washers, normal series, product grade C
Plain washers, normal series, product grade C, hardness class 100 HV. The outside diameters and thicknesses match ISO 7089, but the clearance holes are wider. Current replacement for DIN 126. Includes both the preferred sizes and the non-preferred sizes 3.5, 14, 18, 22, 27, 33, 39, 45, 52 and 60.
ISO 7092 - Plain washers, small series, product grade A
Plain washers, small series, product grade A, hardness classes 200 HV and 300 HV, for cheese head screws. The outside diameter is smaller than the normal series ISO 7089. Current replacement for DIN 433. Includes both the preferred sizes and the non-preferred sizes 3.5, 14, 18, 22, 27 and 33.
ISO 7093-1 - Plain washers, large series, product grade A
Plain washers, large series, product grade A. Current replacement for DIN 9021, but the sizes are not identical. Includes both the preferred sizes and the non-preferred sizes 3.5, 14, 18, 22, 27 and 33.
ISO 7093-2 - Plain washers, large series, product grade C
Plain washers, large series, product grade C, hardness class 100 HV. The outside diameters and thicknesses match ISO 7093-1, but the clearance holes are wider. Includes both the preferred sizes and the non-preferred sizes 3.5, 14, 18, 22, 27 and 33.
ISO 7094 - Plain washers, extra large series, product grade C
Plain washers, extra large series, product grade C, hardness class 100 HV, mainly for timber constructions. Current replacement for the round hole form of DIN 440, with identical dimensions in the shared size range. Includes both the preferred sizes and the non-preferred sizes 14, 18, 22, 27 and 33.

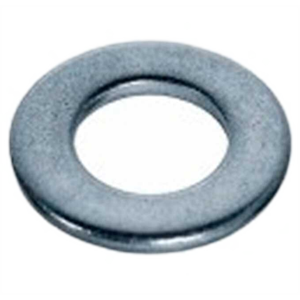

ISO 8738 - Plain washers for clevis pins, product grade A
Plain washers for clevis pins, product grade A, for use with ISO 2340 and ISO 2341 clevis pins. Current replacement for DIN 1440; several nominal sizes and outside diameters differ.
