Ring: retaining for shafts

DIN 471

DIN 471 - Retaining rings for shafts - Normal type and heavy type

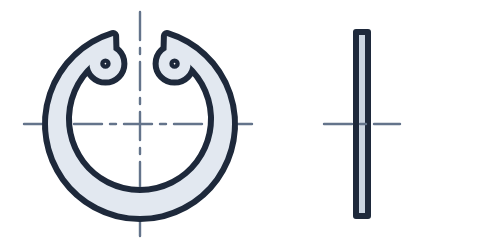

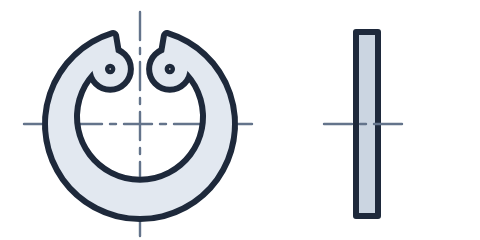

Retaining rings for shafts, normal type and heavy type, seated axially in a groove to locate parts on a shaft. DIN 471:2026-05; a size is the pair of shaft diameter and ring thickness, and the heavy type is the thicker ring for the same shaft and groove.

DIN 471

Geometry

×
Shaft diameter
Thickness
Free inner diameter
Lug width
Ring radial width
Lug hole diameter
Groove diameter
Groove width
Minimum groove-to-shaft-end distance
Product Ring type Shaft diameter, mm Thickness, mm Free inner diameter, mm Lug width, mm Ring radial width, mm Lug hole diameter, mm Groove diameter, mm Groove width, mm Minimum groove-to-shaft-end distance, mm
DIN 471 retaining ring 3x0.4 normal normal 3 0.4 2.7 1.9 0.8 1 2.8 0.5 0.3
DIN 471 retaining ring 4x0.4 normal normal 4 0.4 3.7 2.2 0.9 1 3.8 0.5 0.3
DIN 471 retaining ring 5x0.6 normal normal 5 0.6 4.7 2.5 1.1 1 4.8 0.7 0.3
DIN 471 retaining ring 6x0.7 normal normal 6 0.7 5.6 2.7 1.3 1.2 5.7 0.8 0.5
DIN 471 retaining ring 7x0.8 normal normal 7 0.8 6.5 3.1 1.4 1.2 6.7 0.9 0.5
DIN 471 retaining ring 8x0.8 normal normal 8 0.8 7.4 3.2 1.5 1.2 7.6 0.9 0.6
DIN 471 retaining ring 9x1 normal normal 9 1 8.4 3.3 1.7 1.2 8.6 1.1 0.6
DIN 471 retaining ring 10x1 normal normal 10 1 9.3 3.3 1.8 1.5 9.6 1.1 0.6
DIN 471 retaining ring 11x1 normal normal 11 1 10.2 3.3 1.8 1.5 10.5 1.1 0.8
DIN 471 retaining ring 12x1 normal normal 12 1 11 3.3 1.8 1.7 11.5 1.1 0.8
DIN 471 retaining ring 13x1 normal normal 13 1 11.9 3.4 2 1.7 12.4 1.1 0.9
DIN 471 retaining ring 14x1 normal normal 14 1 12.9 3.5 2.1 1.7 13.4 1.1 0.9
DIN 471 retaining ring 15x1 normal normal 15 1 13.8 3.6 2.2 1.7 14.3 1.1 1.1
DIN 471 retaining ring 15x1.5 heavy heavy 15 1.5 13.8 4.8 2.4 2 14.3 1.6 1.1
DIN 471 retaining ring 16x1 normal normal 16 1 14.7 3.7 2.2 1.7 15.2 1.1 1.2
DIN 471 retaining ring 16x1.5 heavy heavy 16 1.5 14.7 5 2.5 2 15.2 1.6 1.2
DIN 471 retaining ring 17x1 normal normal 17 1 15.7 3.8 2.3 1.7 16.2 1.1 1.2
DIN 471 retaining ring 17x1.5 heavy heavy 17 1.5 15.7 5 2.6 2 16.2 1.6 1.2
DIN 471 retaining ring 18x1.2 normal normal 18 1.2 16.5 3.9 2.4 2 17 1.3 1.5
DIN 471 retaining ring 18x1.5 heavy heavy 18 1.5 16.5 5.1 2.7 2 17 1.6 1.5
DIN 471 retaining ring 19x1.2 normal normal 19 1.2 17.5 3.9 2.5 2 18 1.3 1.5
DIN 471 retaining ring 20x1.2 normal normal 20 1.2 18.5 4 2.6 2 19 1.3 1.5
DIN 471 retaining ring 20x1.75 heavy heavy 20 1.75 18.5 5.5 3 2 19 1.85 1.5
DIN 471 retaining ring 21x1.2 normal normal 21 1.2 19.5 4.1 2.7 2 20 1.3 1.5
DIN 471 retaining ring 22x1.2 normal normal 22 1.2 20.5 4.2 2.8 2 21 1.3 1.5
DIN 471 retaining ring 22x1.75 heavy heavy 22 1.75 20.5 6 3.1 2 21 1.85 1.5
DIN 471 retaining ring 24x1.2 normal normal 24 1.2 22.2 4.4 3 2 22.9 1.3 1.7
DIN 471 retaining ring 24x1.75 heavy heavy 24 1.75 22.2 6.3 3.2 2 22.9 1.85 1.7
DIN 471 retaining ring 25x1.2 normal normal 25 1.2 23.2 4.4 3 2 23.9 1.3 1.7
DIN 471 retaining ring 25x2 heavy heavy 25 2 23.2 6.4 3.4 2 23.9 2.15 1.7
DIN 471 retaining ring 26x1.2 normal normal 26 1.2 24.2 4.5 3.1 2 24.9 1.3 1.7
DIN 471 retaining ring 28x1.5 normal normal 28 1.5 25.9 4.7 3.2 2 26.6 1.6 2.1
DIN 471 retaining ring 28x2 heavy heavy 28 2 25.9 6.5 3.5 2 26.6 2.15 2.1
DIN 471 retaining ring 29x1.5 normal normal 29 1.5 26.9 4.8 3.4 2 27.6 1.6 2.1
DIN 471 retaining ring 30x1.5 normal normal 30 1.5 27.9 5 3.5 2 28.6 1.6 2.1
DIN 471 retaining ring 30x2 heavy heavy 30 2 27.9 6.5 4.1 2 28.6 2.15 2.1
DIN 471 retaining ring 32x1.5 normal normal 32 1.5 29.6 5.2 3.6 2.5 30.3 1.6 2.6
DIN 471 retaining ring 32x2 heavy heavy 32 2 29.6 6.5 4.1 2.5 30.3 2.15 2.6
DIN 471 retaining ring 34x1.5 normal normal 34 1.5 31.5 5.4 3.8 2.5 32.3 1.6 2.6
DIN 471 retaining ring 34x2.5 heavy heavy 34 2.5 31.5 6.6 4.2 2.5 32.3 2.65 2.6
DIN 471 retaining ring 35x1.5 normal normal 35 1.5 32.2 5.6 3.9 2.5 33 1.6 3
DIN 471 retaining ring 35x2.5 heavy heavy 35 2.5 32.2 6.7 4.2 2.5 33 2.65 3
DIN 471 retaining ring 36x1.75 normal normal 36 1.75 33.2 5.6 4 2.5 34 1.85 3
DIN 471 retaining ring 38x1.75 normal normal 38 1.75 35.2 5.8 4.2 2.5 36 1.85 3
DIN 471 retaining ring 38x2.5 heavy heavy 38 2.5 35.2 6.8 4.3 2.5 36 2.65 3
DIN 471 retaining ring 40x1.75 normal normal 40 1.75 36.5 6 4.4 2.5 37.5 1.85 3.8
DIN 471 retaining ring 40x2.5 heavy heavy 40 2.5 36.5 7 4.4 2.5 37.5 2.65 3.8
DIN 471 retaining ring 42x1.75 normal normal 42 1.75 38.5 6.5 4.5 2.5 39.5 1.85 3.8
DIN 471 retaining ring 42x2.5 heavy heavy 42 2.5 38.5 7.2 4.5 2.5 39.5 2.65 3.8
DIN 471 retaining ring 45x1.75 normal normal 45 1.75 41.5 6.7 4.7 2.5 42.5 1.85 3.8
DIN 471 retaining ring 45x2.5 heavy heavy 45 2.5 41.5 7.5 4.7 2.5 42.5 2.65 3.8
DIN 471 retaining ring 48x1.75 normal normal 48 1.75 44.5 6.9 5 2.5 45.5 1.85 3.8
DIN 471 retaining ring 48x2.5 heavy heavy 48 2.5 44.5 7.8 5 2.5 45.5 2.65 3.8
DIN 471 retaining ring 50x2 normal normal 50 2 45.8 6.9 5.1 2.5 47 2.15 4.5
DIN 471 retaining ring 50x3 heavy heavy 50 3 45.8 8 5.1 2.5 47 3.15 4.5
DIN 471 retaining ring 52x2 normal normal 52 2 47.8 7 5.2 2.5 49 2.15 4.5
DIN 471 retaining ring 52x3 heavy heavy 52 3 47.8 8.2 5.2 2.5 49 3.15 4.5
DIN 471 retaining ring 55x2 normal normal 55 2 50.8 7.2 5.4 2.5 52 2.15 4.5
DIN 471 retaining ring 55x3 heavy heavy 55 3 50.8 8.5 5.4 2.5 52 3.15 4.5
DIN 471 retaining ring 56x2 normal normal 56 2 51.8 7.3 5.5 2.5 53 2.15 4.5
DIN 471 retaining ring 58x2 normal normal 58 2 53.8 7.3 5.6 2.5 55 2.15 4.5
DIN 471 retaining ring 58x3 heavy heavy 58 3 53.8 8.8 5.6 2.5 55 3.15 4.5
DIN 471 retaining ring 60x2 normal normal 60 2 55.8 7.4 5.8 2.5 57 2.15 4.5
DIN 471 retaining ring 60x3 heavy heavy 60 3 55.8 9 5.8 2.5 57 3.15 4.5
DIN 471 retaining ring 62x2 normal normal 62 2 57.8 7.5 6 2.5 59 2.15 4.5
DIN 471 retaining ring 63x2 normal normal 63 2 58.8 7.6 6.2 2.5 60 2.15 4.5
DIN 471 retaining ring 65x2.5 normal normal 65 2.5 60.8 7.8 6.3 3 62 2.65 4.5
DIN 471 retaining ring 65x4 heavy heavy 65 4 60.8 9.3 6.3 3 62 4.15 4.5
DIN 471 retaining ring 68x2.5 normal normal 68 2.5 63.5 8 6.5 3 65 2.65 4.5
DIN 471 retaining ring 70x2.5 normal normal 70 2.5 65.5 8.1 6.6 3 67 2.65 4.5
DIN 471 retaining ring 70x4 heavy heavy 70 4 65.5 9.5 6.6 3 67 4.15 4.5
DIN 471 retaining ring 72x2.5 normal normal 72 2.5 67.5 8.2 6.8 3 69 2.65 4.5
DIN 471 retaining ring 75x2.5 normal normal 75 2.5 70.5 8.4 7 3 72 2.65 4.5
DIN 471 retaining ring 75x4 heavy heavy 75 4 70.5 9.7 7 3 72 4.15 4.5
DIN 471 retaining ring 78x2.5 normal normal 78 2.5 73.5 8.6 7.3 3 75 2.65 4.5
DIN 471 retaining ring 80x2.5 normal normal 80 2.5 74.5 8.6 7.4 3 76.5 2.65 5.3
DIN 471 retaining ring 80x4 heavy heavy 80 4 74.5 9.8 7.4 3 76.5 4.15 5.3
DIN 471 retaining ring 82x2.5 normal normal 82 2.5 76.5 8.7 7.6 3 78.5 2.65 5.3
DIN 471 retaining ring 85x3 normal normal 85 3 79.5 8.7 7.8 3.5 81.5 3.15 5.3
DIN 471 retaining ring 85x4 heavy heavy 85 4 79.5 10 7.8 3.5 81.5 4.15 5.3
DIN 471 retaining ring 88x3 normal normal 88 3 82.5 8.8 8 3.5 84.5 3.15 5.3
DIN 471 retaining ring 90x3 normal normal 90 3 84.5 8.8 8.2 3.5 86.5 3.15 5.3
DIN 471 retaining ring 90x4 heavy heavy 90 4 84.5 10.2 8.2 3.5 86.5 4.15 5.3
DIN 471 retaining ring 95x3 normal normal 95 3 89.5 9.4 8.6 3.5 91.5 3.15 5.3
DIN 471 retaining ring 100x3 normal normal 100 3 94.5 9.6 9 3.5 96.5 3.15 5.3
DIN 471 retaining ring 100x4 heavy heavy 100 4 94.5 10.5 9 3.5 96.5 4.15 5.3
DIN 471 retaining ring 105x4 normal normal 105 4 98 9.9 9.3 3.5 101 4.15 6
DIN 471 retaining ring 110x4 normal normal 110 4 103 10.1 9.6 3.5 106 4.15 6
DIN 471 retaining ring 115x4 normal normal 115 4 108 10.6 9.8 3.5 111 4.15 6
DIN 471 retaining ring 120x4 normal normal 120 4 113 11 10.2 3.5 116 4.15 6
DIN 471 retaining ring 125x4 normal normal 125 4 118 11.4 10.4 4 121 4.15 6
DIN 471 retaining ring 130x4 normal normal 130 4 123 11.6 10.7 4 126 4.15 6
DIN 471 retaining ring 135x4 normal normal 135 4 128 11.8 11 4 131 4.15 6
DIN 471 retaining ring 140x4 normal normal 140 4 133 12 11.2 4 136 4.15 6
DIN 471 retaining ring 145x4 normal normal 145 4 138 12.2 11.5 4 141 4.15 6
DIN 471 retaining ring 150x4 normal normal 150 4 142 13 11.8 4 145 4.15 7.5
DIN 471 retaining ring 155x4 normal normal 155 4 146 13 12 4 150 4.15 7.5
DIN 471 retaining ring 160x4 normal normal 160 4 151 13.3 12.2 4 155 4.15 7.5
DIN 471 retaining ring 165x4 normal normal 165 4 155.5 13.5 12.5 4 160 4.15 7.5
DIN 471 retaining ring 170x4 normal normal 170 4 160.5 13.5 12.9 4 165 4.15 7.5
